This feature is available as an add-on for the Honeycomb Enterprise plan. Please contact your Honeycomb account team for details.

Description

The Bindplane Gateway destination is an OTLP destination meant to be used for nodes sending to a gateway. When using this destination in conjunction with a Telemetry Pipeline Gateway source from another configuration, telemetry traveling through this destination will not be double counted in the Summary view.

Metrics	Logs	Traces	Telemetry Pipeline Agent
✓	✓	✓	`v1.52.0`+

Metrics

Logs

Traces

Telemetry Pipeline Agent

✓

v1.52.0+

Configuration Table

Field	Description
Hostname	Hostname or IP address where the exporter will send OTLP data.
Port	TCP port to which the exporter is going to send OTLP data.
Protocol	The OTLP protocol to use when sending OTLP telemetry. Can be gRPC or HTTP.
Compression	Compression algorithm to use when sending data to the OTLP server. Ensure that the server supports the compression algorithm selected. Kinds of compression depend on `Protocol`.
Additional Headers	Add additional headers to be attached to each request.
Enable TLS	Whether or not to use TLS.
Skip TLS Certificate Verification	Enable to skip TLS certificate verification.
TLS Certificate Authority File	Certificate authority used to validate TLS certificates.
Server Name Override	Optional virtual hostname. Indicates the name of the server requested by the client. This option is generally not required. Read more here.
Mutual TLS	Whether or not to use mutual TLS authentication.
Mutual TLS Client Certificate File	A TLS certificate used for client authentication.
Mutual TLS Client Private Key File	A TLS private key used for client authentication.

Sending Queue	Persistent Queue	Retry on Failure
✓	✓	✓

Sending Queue

Persistent Queue

Retry on Failure

✓

Example Configuration

In this configuration, we specify the hostname of the Telemetry Pipeline Gateway server telemetry is going to be sent to, as well as what protocol will be used.

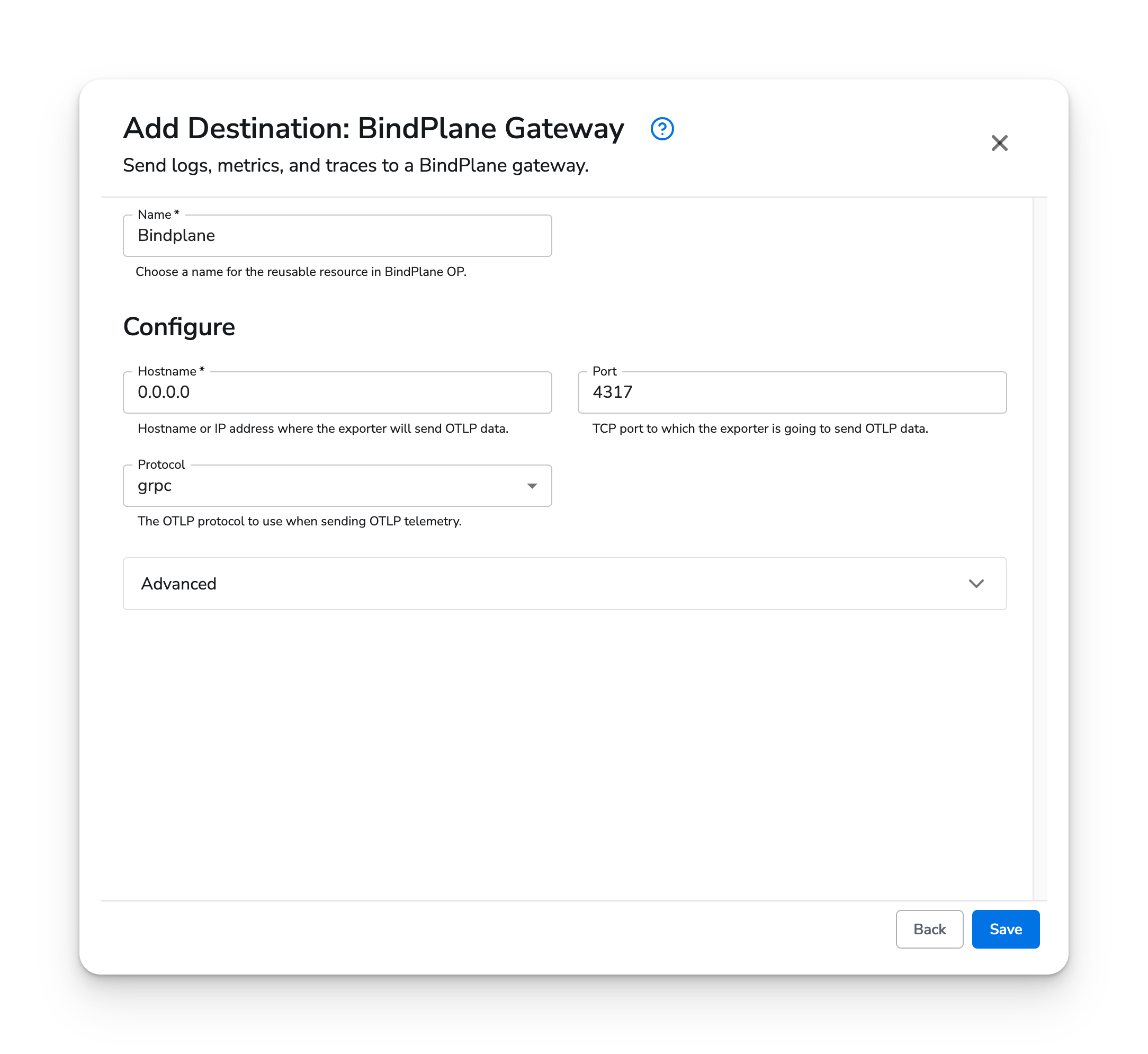

Web Interface

Honeycomb Docs - BindPlane Gateway Destination - image 1

Standalone Destination

apiVersion: bindplane.observiq.com/v1
kind: Destination
metadata:
  id: bindplane_gateway
  name: bindplane_gateway
spec:
  type: bindplane_gateway
  parameters:
    - name: hostname
      value: '0.0.0.0'
    - name: protocol
      value: 'grpc'
    - name: grpc_port
      value: '4317'
    - name: enable_tls
      value: 'false'
