Azure Blob Storage

Ent+

This feature is available as an add-on for the Honeycomb Enterprise plan. Please contact your Honeycomb account team for details.

Supported Types

Metrics	Logs	Traces
✓	✓	✓

The Azure Blob Storage destination saves telemetry as OTLP JSON files in Azure Blob Storage.

Configuration

Parameter	Type	Default	Description
telemetry_types*	`telemetrySelector`	Logs, Metrics, Traces	Specifies which types of telemetry to export.
connection_string*	`string`	""	The connection string for the Azure Storage account. More information can be found here.
container*	`string`	""	Name of the Azure Storage container to export telemetry into.
prefix	`string`	""	The root directory of the blob path to export telemetry into.
blob_prefix	`string`	""	Prefix for the name of the exported telemetry files.
partition*	`enum`	minute	The granularity of the timestamps in the blob path, either “minute” or “hour”.
compression	`enum`	`gzip`	The compression algorithm to use when exporting telemetry, either “none” or “gzip”

* required field

Supported Retry and Queuing Settings

This destination supports the following retry and queuing settings:

Sending Queue	Persistent Queue	Retry on Failure
✓	✓	✓

Example Configuration

Basic Configuration

For basic configuration, we specify the connection_string as well as a container, prefix, and blob_prefix. By default, we are still using a partition of minute and gzip for the compression value. This will create a blob path that looks like the following inside the otel container:

telemetry/year=2021/month=01/day=01/hour=01/minute=00/bindplanemetrics_{random_id}.json.gz
telemetry/year=2021/month=01/day=01/hour=01/minute=00/bindplanelogs_{random_id}.json.gz
telemetry/year=2021/month=01/day=01/hour=01/minute=00/bindplanetraces_{random_id}.json.gz

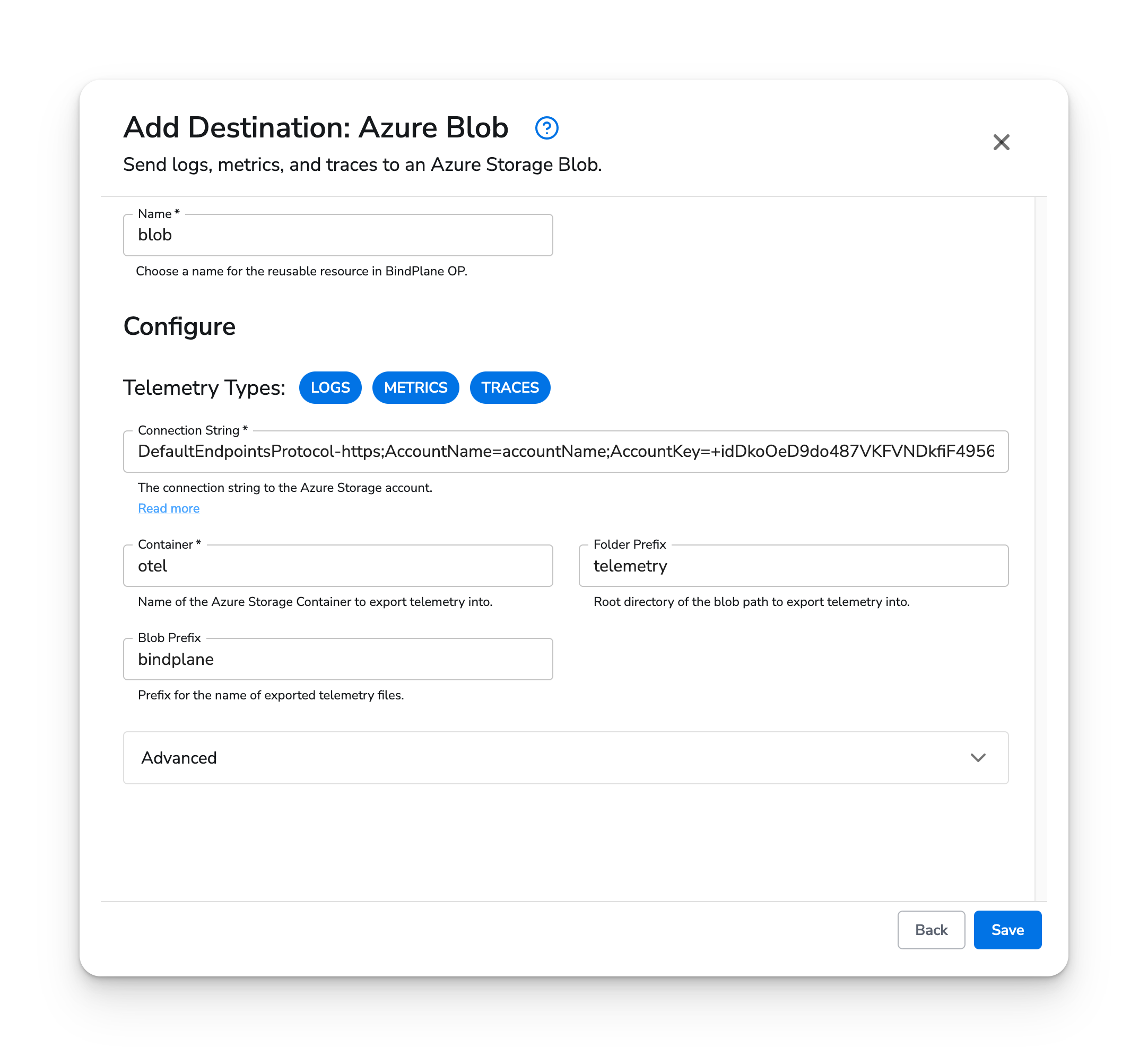

Web Interface

Honeycomb Docs - Azure Blob Storage - image 1

Standalone Destination

apiVersion: bindplane.observiq.com/v1
kind: Destination
metadata:
  id: azure_blob
  name: azure_blob
spec:
  type: azure_blob
  parameters:
    - name: telemetry_types
      value: ['Logs', 'Metrics', 'Traces']
    - name: connection_string
      value: 'DefaultEndpointsProtocol=https;AccountName=accountName;AccountKey=+idLkHYcL0MUWIKYHm2j4Q==;EndpointSuffix=core.windows.net'
    - name: container
      value: 'otel'
    - name: prefix
      value: 'telemetry'
    - name: blob_prefix
      value: bindplane

Specify Partition and Default Configuration

This configuration is the same as the basic configuration but will specify a partition of hour and compression set to none. This will create a blob path that looks like the following inside the otel container:

telemetry/year=2021/month=01/day=01/hour=01/bindplanemetrics_{random_id}.json
telemetry/year=2021/month=01/day=01/hour=01/bindplanelogs_{random_id}.json
telemetry/year=2021/month=01/day=01/hour=01/bindplanetraces_{random_id}.json

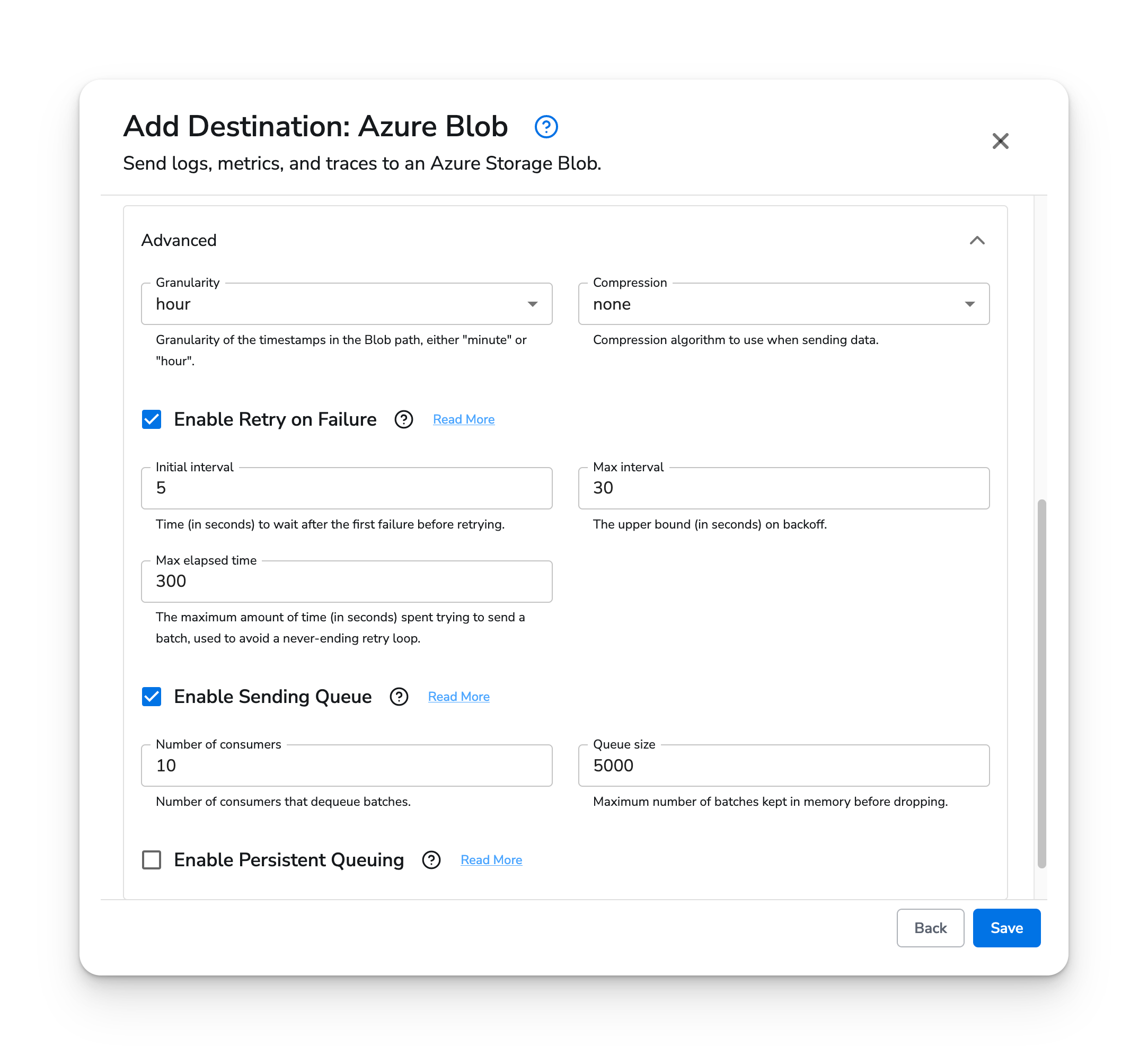

Web Interface

Honeycomb Docs - Azure Blob Storage - image 2

Standalone Destination

apiVersion: bindplane.observiq.com/v1
kind: Destination
metadata:
  id: azure_blob
  name: azure_blob
spec:
  type: azure_blob
  parameters:
    - name: telemetry_types
      value: ['Logs', 'Metrics', 'Traces']
    - name: connection_string
      value: 'DefaultEndpointsProtocol=https;AccountName=accountName;AccountKey=+idLkHYcL0MUWIKYHm2j4Q==;EndpointSuffix=core.windows.net'
    - name: container
      value: 'otel'
    - name: prefix
      value: 'telemetry'
    - name: blob_prefix
      value: bindplane
    - name: partition
      value: 'hour'
    - name: compression
      value: 'none'
