Get Started with Traces and Wide Events

Table of Contents

Honeycomb is a fast analysis tool that helps you analyze your code’s performance and behavior to troubleshoot complex relationships within your system to solve problems faster.

To use Honeycomb, you first need to get your system’s traces into Honeycomb. These instructions will guide you through the process of sending trace data from an application in your local development environment to Honeycomb and exploring your data in Honeycomb.

Before You Begin

Before you run the code, you’ll need to do a few things.

Create a Honeycomb Account

Before you can use Honeycomb products, you’ll need to decide whether you would like Honeycomb to store your data in a US-based or EU-based location. Then, create a Honeycomb account in the US or create a Honeycomb account in the EU. Signup is free!

Create a Honeycomb Team

Complete your account creation by giving us a team name. Honeycomb uses teams to organize groups of users, grant them access to data, and create a shared work history in Honeycomb.

Get Your Honeycomb API Key

To send data to Honeycomb, you’ll need your Honeycomb API Key. Once you create your team, you will be able to view or copy it. Make note of your API Key; for security reasons, you will not be able to see it again, and you will need it later!

You can also find your Honeycomb API Key any time in your Environment Settings.

Send Telemetry Data to Honeycomb

Once you have your Honeycomb API key and have chosen an application, it’s time to send telemetry data to Honeycomb!

Choose Your Application

Choose a single application or service that will send data to Honeycomb. To successfully complete this Quick Start, you should have access to modify your application’s source code. To test the application when you are finished, you must be able to run your application or service in a development environment.

Add Automatic Instrumentation to Your Code

The quickest way to start seeing your trace data in Honeycomb is to use OpenTelemetry, an open-source collection of tools, APIs, and SDKs, to automatically inject instrumentation code into your application without requiring explicit changes to your codebase.

When you add automatic instrumentation to your code, OpenTelemetry will build spans, which represent units of work or operations within your application that you want to capture and analyze for observability purposes.

npm install --save @opentelemetry/auto-instrumentations-node

// Example filename: tracing.js
'use strict';

const opentelemetry = require('@opentelemetry/sdk-node');
const { OTLPTraceExporter } =  require('@opentelemetry/exporter-trace-otlp-http');
const { getNodeAutoInstrumentations } = require('@opentelemetry/auto-instrumentations-node');

const sdk = new opentelemetry.NodeSDK({
    traceExporter: new OTLPTraceExporter(),
    instrumentations: [
        getNodeAutoInstrumentations({
            // we recommend disabling fs autoinstrumentation since it can be noisy
            // and expensive during startup
            '@opentelemetry/instrumentation-fs': {
                enabled: false,
            },
        }),
    ],
});

sdk.start();

export OTEL_SERVICE_NAME="your-service-name"
export OTEL_EXPORTER_OTLP_PROTOCOL="http/protobuf"
export OTEL_EXPORTER_OTLP_ENDPOINT="https://api.honeycomb.io:443" # US instance
#export OTEL_EXPORTER_OTLP_ENDPOINT="https://api.eu1.honeycomb.io:443" # EU instance
export OTEL_EXPORTER_OTLP_HEADERS="x-honeycomb-team=your-api-key"

export OTEL_EXPORTER_OTLP_HEADERS="x-honeycomb-team=your-api-key,x-honeycomb-dataset=your-dataset"

node -r ./tracing.js YOUR_APPLICATION_NAME.js

export OTEL_SERVICE_NAME="your-service-name"
export OTEL_EXPORTER_OTLP_PROTOCOL="http/protobuf"
export OTEL_EXPORTER_OTLP_ENDPOINT="https://api.honeycomb.io:443" # US instance
#export OTEL_EXPORTER_OTLP_ENDPOINT="https://api.eu1.honeycomb.io:443" # EU instance
export OTEL_EXPORTER_OTLP_HEADERS="x-honeycomb-team=<your-api-key>"

export OTEL_EXPORTER_OTLP_HEADERS="x-honeycomb-team=your-api-key,x-honeycomb-dataset=your-dataset"

opentelemetry-instrument python YOUR_APPLICATION_NAME.py

curl -L -O https://github.com/open-telemetry/opentelemetry-java-instrumentation/releases/latest/download/opentelemetry-javaagent.jar

java -javaagent:opentelemetry-javaagent.jar -jar /path/to/myapp.jar

java \
-Dotel.javaagent.configuration-file=/path/to/properties/file \
-javaagent:opentelemetry-javaagent.jar \
-jar /path/to/myapp.jar

dotnet add package OpenTelemetry
dotnet add package OpenTelemetry.Extensions.Hosting
dotnet add package OpenTelemetry.Instrumentation.AspNetCore
dotnet add package OpenTelemetry.Instrumentation.Http

services.AddOpenTelemetry().WithTracing(builder => builder
    .AddAspNetCoreInstrumentation()
    .AddHttpClientInstrumentation()
    .AddOtlpExporter());

export OTEL_SERVICE_NAME="your-service-name"
export OTEL_EXPORTER_OTLP_PROTOCOL="http/protobuf"
export OTEL_EXPORTER_OTLP_ENDPOINT="https://api.honeycomb.io:443" # US instance
#export OTEL_EXPORTER_OTLP_ENDPOINT="https://api.eu1.honeycomb.io:443" # EU instance
export OTEL_EXPORTER_OTLP_HEADERS="x-honeycomb-team=<your-api-key>"

dotnet run

go get \
  github.com/honeycombio/otel-config-go/otelconfig \
  go.opentelemetry.io/contrib/instrumentation/net/http/otelhttp

package main

import (
    "fmt"
    "log"
    "net/http"

    "github.com/honeycombio/otel-config-go/otelconfig"
    "go.opentelemetry.io/contrib/instrumentation/net/http/otelhttp"
)

// Implement an HTTP Handler function to be instrumented
func httpHandler(w http.ResponseWriter, r *http.Request) {
    fmt.Fprintf(w, "Hello, World")
}

func main() {
    // use otelconfig to set up OpenTelemetry SDK
    otelShutdown, err := otelconfig.ConfigureOpenTelemetry()
    if err != nil {
        log.Fatalf("error setting up OTel SDK - %e", err)
    }
    defer otelShutdown()

    // Initialize HTTP handler instrumentation
    handler := http.HandlerFunc(httpHandler)
    wrappedHandler := otelhttp.NewHandler(handler, "hello")
    http.Handle("/hello", wrappedHandler)

    // Serve HTTP server
    log.Fatal(http.ListenAndServe(":3030", nil))
}

export OTEL_SERVICE_NAME="your-service-name"
export OTEL_EXPORTER_OTLP_ENDPOINT="https://api.honeycomb.io:443" # US instance
#export OTEL_EXPORTER_OTLP_ENDPOINT="https://api.eu1.honeycomb.io:443" # EU instance
export OTEL_EXPORTER_OTLP_HEADERS="x-honeycomb-team=your-api-key"

go run YOUR_APPLICATION_NAME.go

gem 'opentelemetry-sdk'
gem 'opentelemetry-exporter-otlp'
gem 'opentelemetry-instrumentation-all'

bundle install

# config/initializers/opentelemetry.rb
require 'opentelemetry/sdk'
require 'opentelemetry/exporter/otlp'
require 'opentelemetry/instrumentation/all'

OpenTelemetry::SDK.configure do |c|
    c.use_all() # enables all instrumentation!
end

export OTEL_EXPORTER_OTLP_ENDPOINT="https://api.honeycomb.io" # US instance
#export OTEL_EXPORTER_OTLP_ENDPOINT="https://api.eu1.honeycomb.io" # EU instance
export OTEL_EXPORTER_OTLP_HEADERS="x-honeycomb-team=your-api-key"
export OTEL_SERVICE_NAME="your-service-name"

Generate Automated Data

Now that you have added automatic instrumentation to your application and have it running in your development environment, interact with your application by making a few requests. Making requests to your service will generate telemetry data and send it to Honeycomb where it will appear in the Honeycomb UI within seconds.

View an Example Trace

Before you move on, take a look at the data that you have generated using automatic instrumentation by viewing an example trace, which is a visual diagram that represents the complete journey of a request or transaction as it traverses a distributed system.

Traces provide a way to visualize and understand the flow of execution and the interactions between various components involved in serving a request. They can help you find the source of errors in a system, identify the slowest processes, and break down the user experience in great detail.

While Honeycomb helps you analyze all of your outputs, where we particularly shine is when working with traces to give you a visual representation of where requests spend time in your system. In this example, we want to see a count of events, an average latency for those events, and a heatmap of latency.

To see your trace:

1. Depending on where you created your account, either log in to Honeycomb US or log in to Honeycomb EU using your Honeycomb account.
2. From the left sidebar, navigate to Query.
3. In the VISUALIZE clause, add HEATMAP(duration_ms)
4. Select Run Query.
5. In the heatmap results, click on a dot to get a trace.

We generated the following examples after adding automatic instrumentation to a simple greeting service application written in Node.js. You can see the code in our GitHub repository.

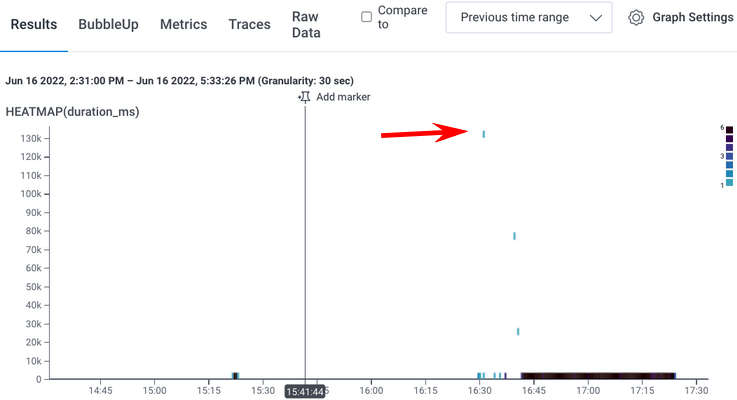

Here’s our example heatmap:

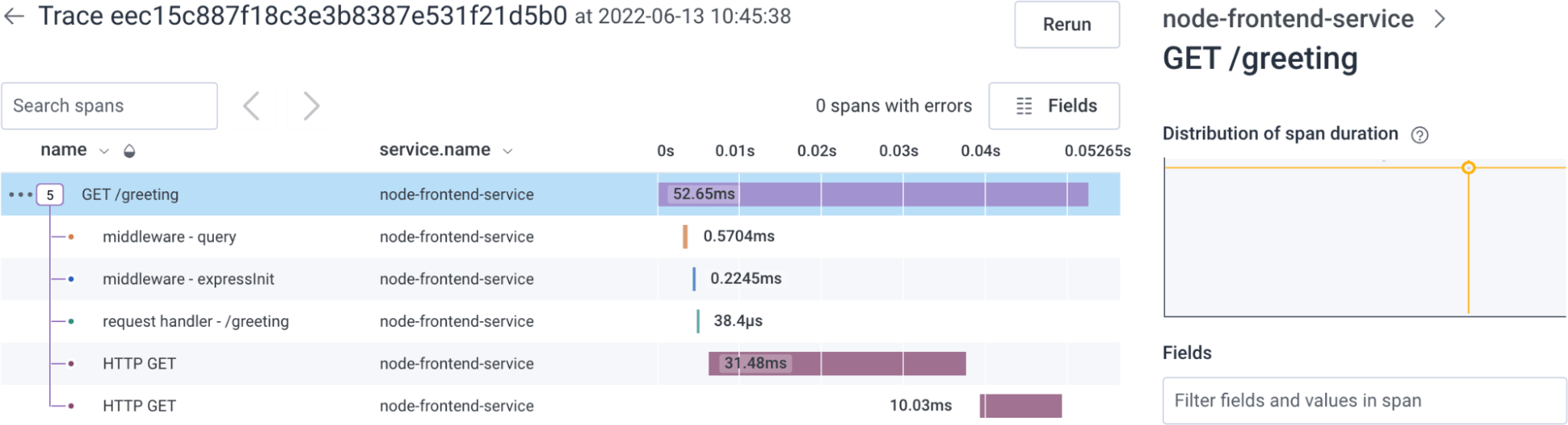

And here is our example trace:

In this trace, you can see:

• the spans within the trace
• how long each span took
• which spans contain errors (none, in this example)

What’s Next?

Excellent work! If you made it this far, you should now have telemetry data from your application flowing into Honeycomb. You can deploy to production and start gaining new insights on real traffic!

But there is so much more to explore! To learn more about what you can do with Honeycomb, check out:

• Customize Instrumentation: Walk through the process of adding custom instrumentation, so you can get additional visibility into the inner workings of your business logic.
• Ways to Explore Your Data: Get a quick run-through of the different ways you can explore your data in Honeycomb.
• Board Templates: Get key insights with one-click with out-of-the-box Board Templates.
• Honeycomb’s Sandbox: Explore common scenarios with real data.
• DevRel Office Hours: Join in on observability talk with world-class experts.
• Integrations: Learn about other types of data you can explore with Honeycomb.
