Dataset Definitions

The Definitions tab in your Dataset Settings allows you to define how specific fields in your Honeycomb dataset should be interpreted. Dataset Definitions set the visualization fields in the trace waterfall and in Home.

Some Dataset Definitions automatically populate when using OpenTelemetry or Beelines instrumentation, but additional definition of these fields is possible.

Access Dataset Definitions

Choose your method of accessing Dataset Definitions through Dataset Settings:

  • In Home, select Dataset Settings for the selected Dataset. In Settings, select the Definitions tab.
  • After selecting Datasets in the left menu, select a dataset to view its Dataset Settings. In Settings, select the Definitions tab.

Dataset Definitions appear in the Definitions tab.

Use the dropdown window in the top left of the Settings Page to navigate between specific Datasets and their definitions settings.

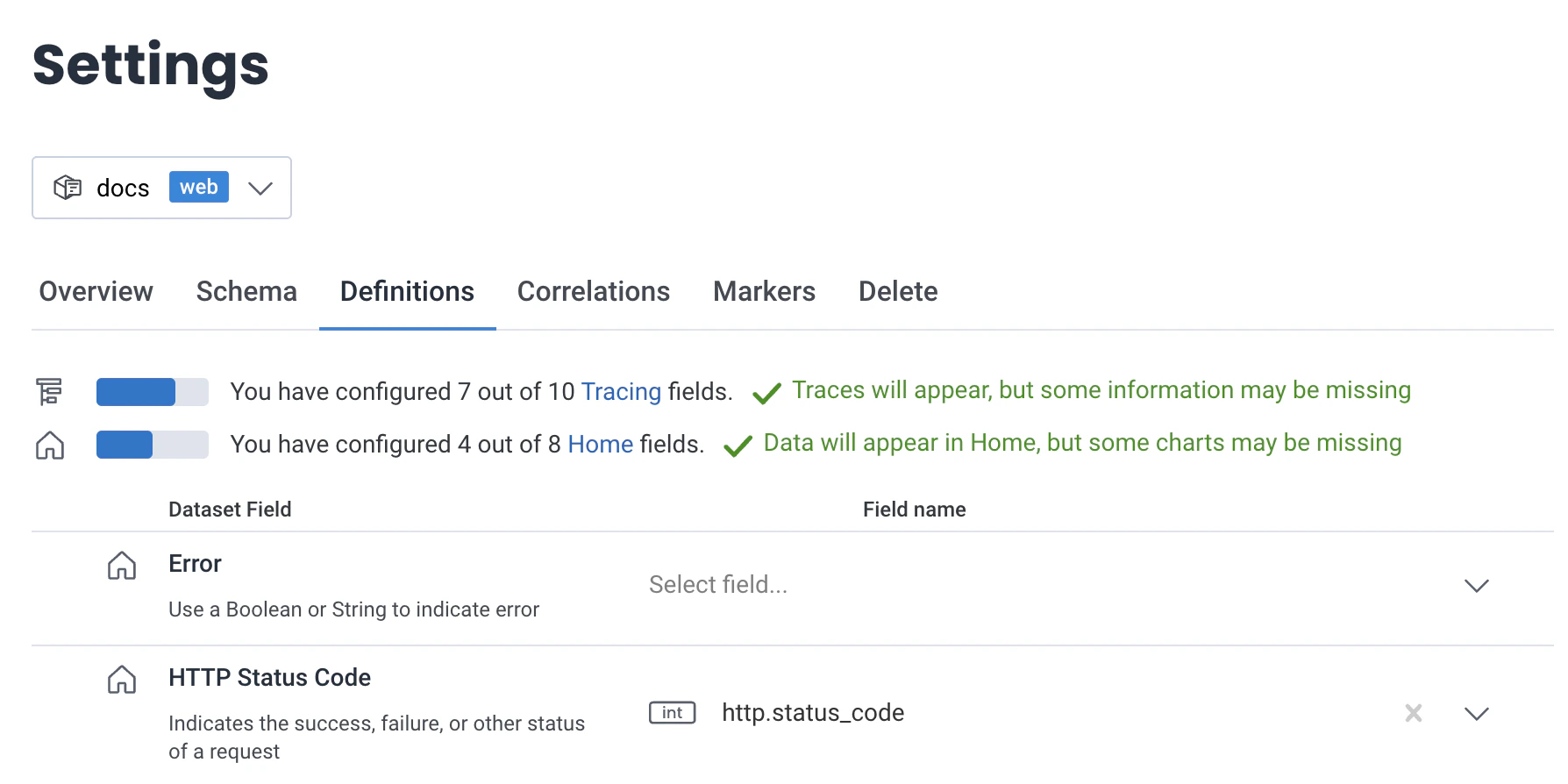

Screenshot of Settings page with selected Definitions tab for frontend dataset

View Dataset Definitions

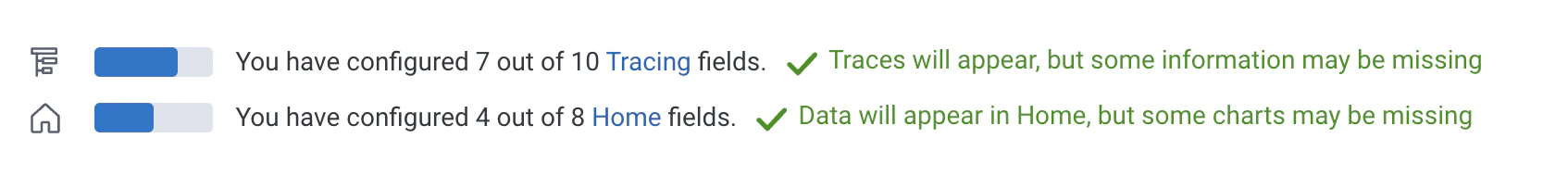

At the top of Dataset Definitions, two configuration completion indicators appear: Tracing with a trace waterfall icon and Home with a house icon. Example of Tracing and Home configuration completion indicators with Tracing complete and Home partially complete. Each indicator displays the level of field configuration completion in progress bar and in numerical format. If all fields are configured, then text will confirm completion. Otherwise, it warns about missing displays.

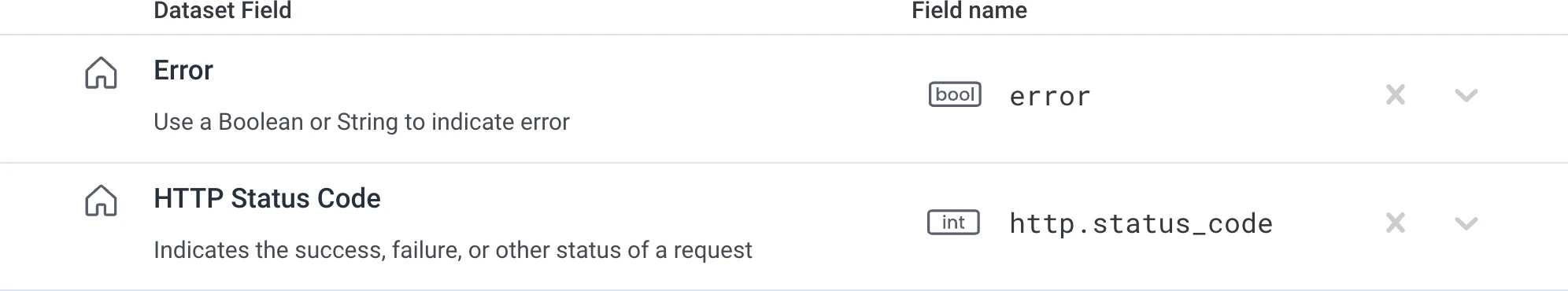

Below the indicators, Dataset Definitions appear in rows. Two rows of dataset definitions with their fields mapped Each row consists of one or more icons, the Dataset field, and the Field name.

The icons indicate if the Dataset Definition applies to the display configuration of Tracing and/or Home. Some Dataset fields overlap between the two configuration sets.

The Dataset field is the fixed field that Honeycomb references in its configuration.

The Field name options populate from fields in your dataset. If a Field name is blank, a Dataset Definition is not configured. To configure, use the dropdown list in Field name to choose from the available dataset fields. Selecting a dataset field maps it to Honeycomb’s Dataset field.

Honeycomb uses these definitions to provide more visualizations of your data in various Honeycomb interfaces, such as in Home, and in the trace waterfall.

Configure Dataset Definitions

If a Field name in a row is blank, a Dataset Definition is not configured.

To configure Dataset Definitions, use the dropdown list in Field name to choose from the available dataset fields. The Field name options populate from fields in your dataset that meet the Dataset field’s data type requirements. Selecting a Field name option maps it to Honeycomb’s Dataset field.

Selecting the X removes the dataset definition assignment on this Dataset field.

Available Definitions

Tracing

Some fields are required for the construction of a trace waterfall, while others are optional and allow us to visualize your data in a different way.

Configure all 10 Tracing fields to ensure a full trace waterfall display.

Some of these tracing fields overlap with the Home fields.

There is a table showing the meanings of each tracing field; and a second with the meanings of span annotation fields for span events and link events.

Span ID
[REQUIRED] The unique ID for each span.
Trace ID
[REQUIRED] The ID of the trace this span belongs to.
Parent Span ID
[REQUIRED] The ID of this span’s parent span, the call location the current span was called from.
Name
[REQUIRED] The name of the function or method where the span was created.
Service Name
[REQUIRED] The name of the instrumented service.
Span Duration
[REQUIRED] How much time the span took, in milliseconds.
Metadata: Kind
[DEPRECATED] This field previously specified span annotation types. Refer to the Deprecation Notice. [OPTIONAL] A tag specifying the kind of span, for example root or child.
Metadata: Annotation Type
A tag specifying the type of Span Annotation. Accepted values are: span_event or link. Only required if you are using one or both of the Span Event or Trace Link annotation features. For most cases, this field is not required. This field lets Honeycomb move Span Annotations from the trace waterfall to the trace sidebar, where they are easier to find and access. Do not use this field for purposes other than specifying the type of Span Annotation. Learn more about Span Annotations.
Metadata: Link Span ID
The Link Span ID allows linking to a different span (when used with Link Trace ID).
Metadata: Link Trace ID
The Link Trace ID allows linking to a different trace or a different span in the same trace (when used with Link Span ID).

Home

Honeycomb visualizes some data on Home without any of these definitions being set. Setting the dataset definitions for Home fields enables tabs within the Home display to be selectable. Some of these Home fields overlap with the tracing fields.

Configure all 7 Home fields to ensure all tabs in Home are selectable.

Error
A boolean or string indicating an error. This field can be a derived column. If you use a string, any value except for "", " ", and "false" will be considered an error.
HTTP Status Code
Indicates the success, failure, or other status of a request. This field can be a string, integer, float or derived column. Read more about http status codes here.
Parent Span ID
The ID of this span’s parent span, the call location the current span was called from. On Home, if you have this field configured (and thus a tracing schema configured), we try to show you just the root spans of your traces.
Route
The HTTP URL or equivalent route processed by the request. This field can be a derived column.
Service Name
The name of the instrumented service.
Span Duration
How much time the span took, in milliseconds.
User
The ID, name, email address (or another unique identifier) of the user making the request in the system. This field can be a string, integer, float, or derived column.
